This machine is a combination type seed cleaning machine with large capacity, high purity and low processing cost, which is especially suitable for grain storage enterprises

Main features

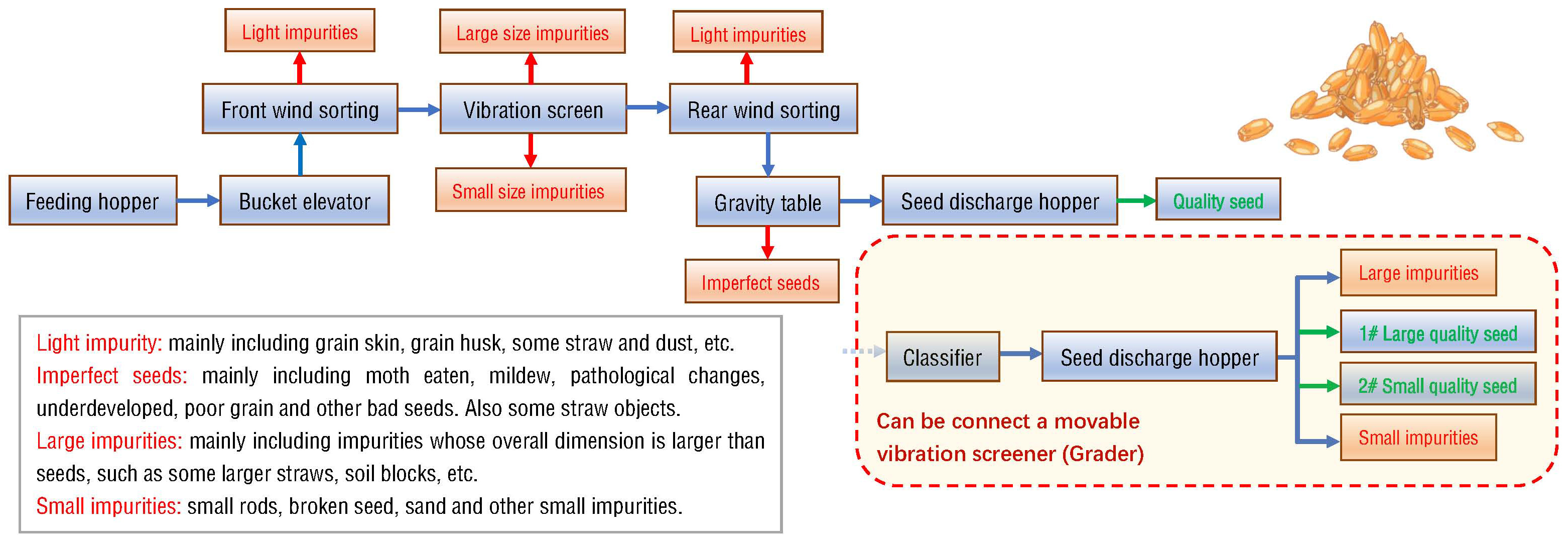

Processing process: air separation (primary)→screening→air separation (secondary) →gravity table. More scientific and standardized processing flow.
Air suction part: use the aerodynamic characteristics to remove dust and light impurities, adopt the front and rear double suction duct structure, convenient air volume control, with cyclone duster.
Screening part: The two-layer screen structure of the vibrating screen is used to remove large and small impurities. It is equipped with rubber ball screen cleaning mechanism to prevent sieve hole from blocking. The vibration motor is used as the source. The magnitude and direction angle of vibration can be adjusted, and the frequency is 960 times / min. it has high reliability and long service life.
Gravity table part: positive pressure type gravity table, in accordance with the density separation principle to remove the less light impurities such as immature seed, germinated seed, moldy seeds, diseased seeds, moth eaten grain, etc.

Technical specification

Model		5XFZ-20
apacity	Sesame	2000-4000 Kg/h
	Rice seed	3000-5000 Kg/h
	Maize and beans	5000-8000 Kg/h
	Wheat seed	8000-10000 Kg/h
Size(L×W×H)		5500×2550×3250 mm
Upper screen(L×W×Layers)		2000×1250mm×2 layers
Size of gravity table		2200×1650mm
Selecting rate		≥ 97%
Broken rate		≤ 0.2%
Total power		15.95 kW
Weight		2300 Kg

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
