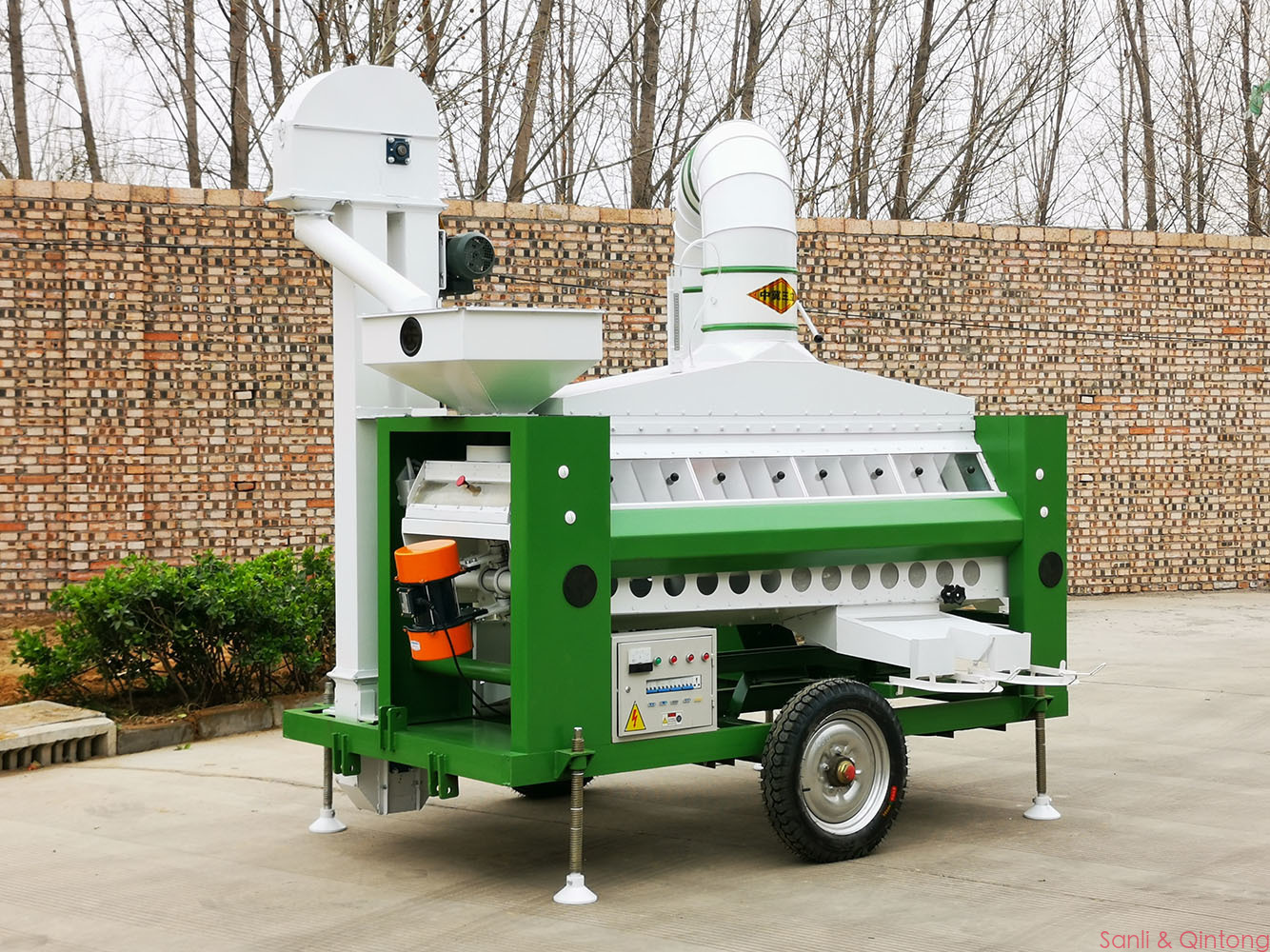

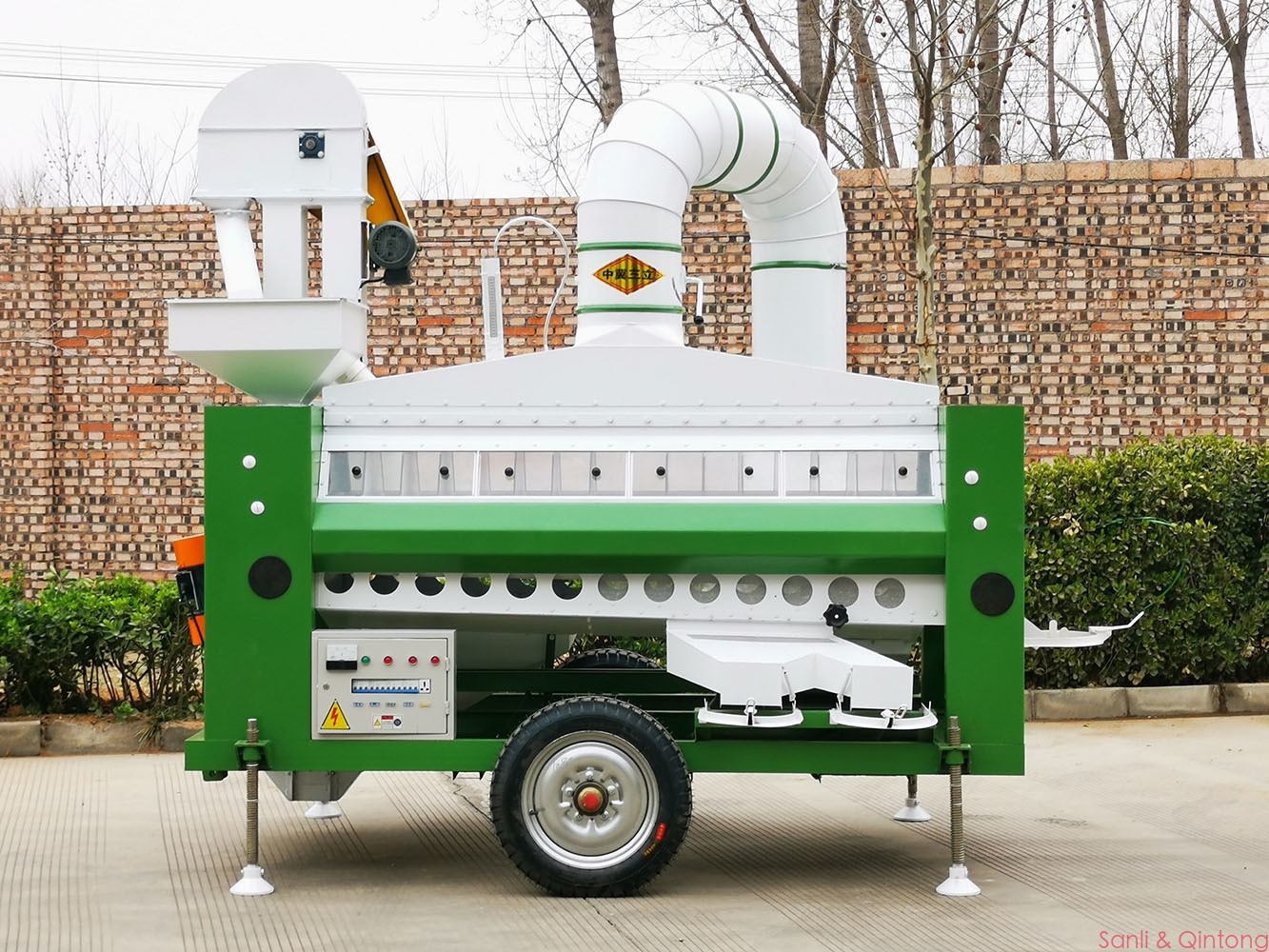

The 5XJC Series Gravity Separator is used for the separation of any kinds of kernels and granular products of almost identical size, they are in the same size but with a difference in specific weight .The Gravity Separator is utilised when the limits of air-aspiration-systems as well as screening are reached. However, the Gravity Separator does not substitute those foregoing sorting steps, but it is an additional piece of equipment for separating more exactly according to the specific weight.

It can be used effectively to remove partially eaten, immature or broken seeds to ensure maximum quality of the final product, ideal for sifting grain seeds, paddy seeds and wheat seeds. Taking productivity to a whole new level. The Voyager is the first completely automated gravity separator with some important plusses: heavier frame to essentially eliminate vibration, quieter fans that create more air for a cleaner, healthier working environment and more precise separation.

Features

1. Superior enclosed counter-balanced drive system for smooth silent operations.

2. All steel construction for durability, easy cleaning and pollution control. Precise and efficient separations.

3. Easy sieve replacement

4. Adjustable dividers to obtain quality of grade desired

5. Counter balanced eccentric drive

6. It facilitates the separation of any granular material into lights and heavies.

Technical parameters

TYPE		5XJC-5
Capacity (As wheat seed)		5000Kg
Exterior size(L×W×H)		4000×1990×2880mm
Weight of total machine		1300Kg
Power	Power Source	380V/50Hz/3-Phase
	Total power	6.8kW
	Elevator	0.75 kW
	Fan machine	5.5 kW
	Feeding back trough	0.18 kW

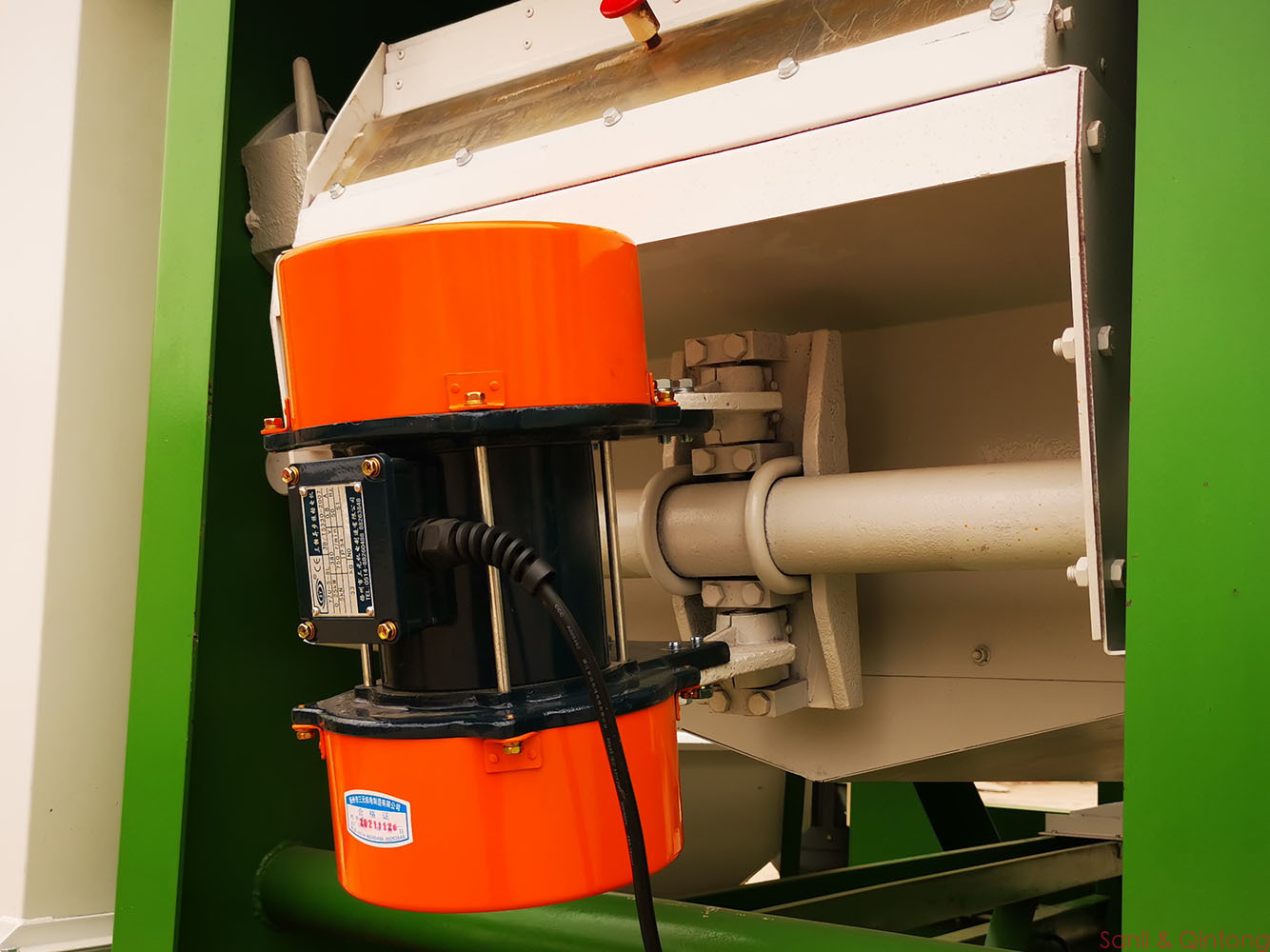

	Vibration motor	0.37 kW
Fan machine airflow		4012-7419 M³/H
Fan machine wind pressure		2014-1320 Pa
Sieve size (mm)		2000×450
The diameter of aspirator pipe		300 mm
Selecting rate		≥98%
Discharged light rate		≥83%
Discharged heavy rate		≥80%

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
