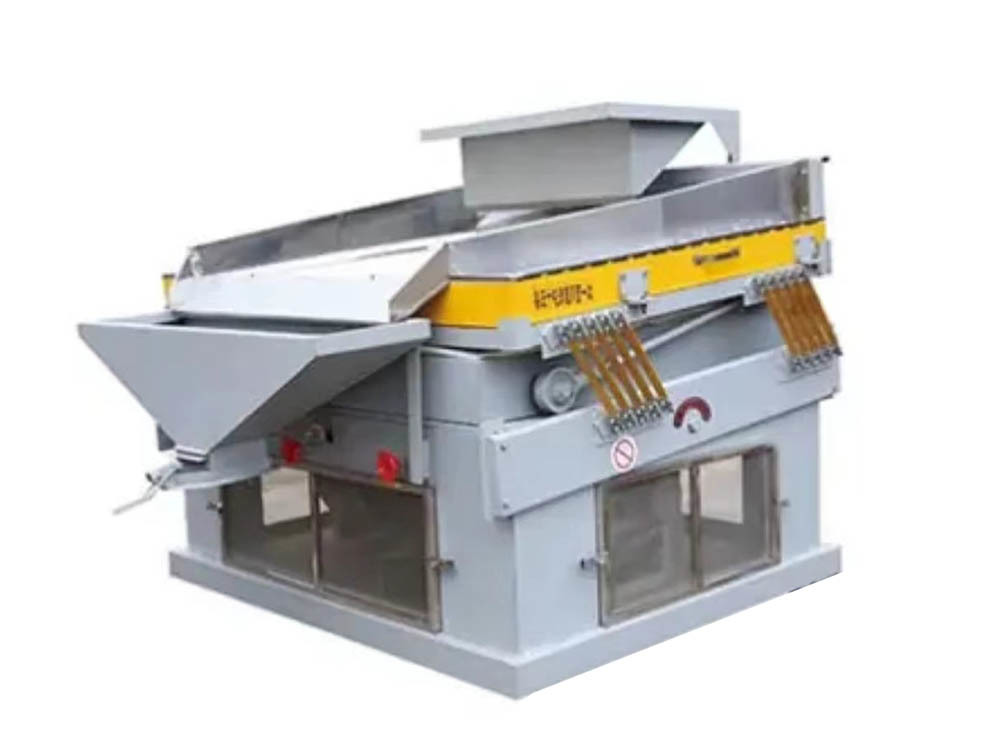

5XZQ-6 Gravity De-stoner
5XZQ-6 Gravity De-stoner
Brief Introduction
The 5XZQ-6 Blowing type gravity De-stoner primarily used for the food process business enterprise, separate the stone, pebble, clod from wheat, paddy, corn, sesame etc , according to
material weight difference. This machine adopt vibration electric engineering as vibration source, having the characteristics that vibration amplitude can adjustable and move organization. Floating-axis rotation, with balancing device, Simple structure, stable operation, small size, high efficiency, safety and reliability.
Technical specification
|
Model |
5XZQ-6 |
5XZQ-8 |
|
|
Max-feeding |
Wheat seed |
4000-6000 Kg/h |
6000-8000 Kg/h |
|
Maize |
3000-5400 Kg/h |
5000-7000 Kg/h |
|
|
Bean&Peas |
3000-5000 Kg/h |
4500-6500 Kg/h |
|
|
Paddy |
2000-3600 Kg/h |
3000-4800 Kg/h |
|
|
Sesame |
900-2000 Kg/h |
1000-2500 Kg/h |
|
|
Overall Size (L×W×H) |
1800×1630×1600mm |
2600×1900×1850mm |
|
|
Screen size |
1500×1520 mm |
1800×1750 mm |
|
|
Weight |
850 Kg |
1050 Kg |
|
|
Power supply |
380V / 50Hz / 3-Phase |
||
|
Total power |
7.0 kW |
9.0 kW |
|
|
Selection rate |
≥98% |
≥98% |
|
|
Remarks |
Can with Cyclone duster |
||
Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
