5XF-7.5A Combination seed selector

Max-Capacity: 7.5T/h (Base on wheat seed) Double air aspiration+ Destoner +3 layers screen

Keywords:

Combination seed selector Seed sorter seed cleaner rape sorter vegetable seed cleaner seaweed cleaning machine Double aspiration grain cleaner

E-mail us:

marketing@sanli.net.cn

Brief Introduction

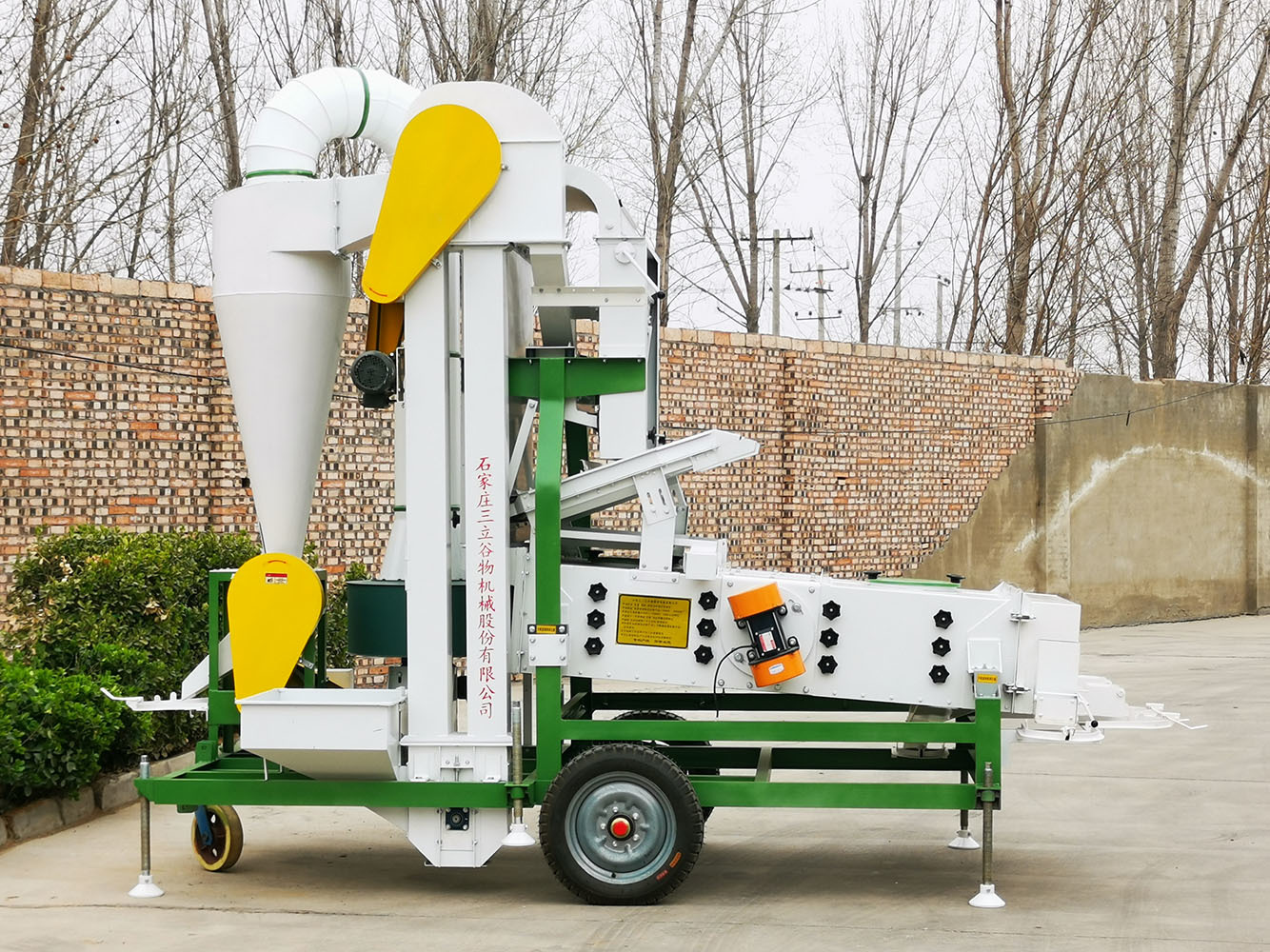

5XF-7.5A combination seed selector is the combination version of Air screen cleaner. Compare with normally air screen cleaner, it has double air suction window and with stone remove function, so its cleaning rate is very excellent. This series of selector came on the market in 2004. Users benefit from their processing capacity, design, technology and Sanli's customer service and after service.

The machine can be used for processing grain, oil seeds and other agricultural byproducts. The machines can also be used for selecting beans, sesames, melon seed, mixed grains, corn, rice grain, wheat, sorghum, rape seed, sunflower seed, cotton seed etc.

Features

1.Combine air suction, vibration sieve and de-stoner. Efficient and easy to use.

2.The machine works with 3 sieve levels, The sieve are cleaned on ball frames, with rubber balls.

3.The rubber ball sifting structure complies with international standards, Sanli’s patented rubber ball is highly elastic, endures and long lasting.

4.The sieves are tightly fit in the machine by a clamp-locking system for quick changing of the sieves and thorough cleaning of the machine.

5.The volume of air is variable and adjusted from minimum to maximum by a controlling handle, assuring very accurate cleaning and sorting of seeds. The blower has a very stable and reproducible output.

6.Transparent inspection windows for easy inspection and clean out.

7.Very easy and thorough cleaning of the machine and no contamination risk.

8.No wooden frames on the sieves where seeds can hide.

9.With cyclone duster, Environmentally friendly model.

Technical parameters

Model		5XF-7.5A	5XF-7.5DA
Max-feeding Capacity	Wheat	5000-7500 Kg/h
	Maize&beans	4000-6500 Kg/h
	Rice seed	2200-4500 Kg/h
	Sesame	1500-2500 Kg/h
Size (L×W×H)		4900×1980×3200mm
Weight		1800 Kg	1850 Kg
Sieve size(L×W)		2400×1250mm
Sieve Layers		3 layers	4 layers
Power supply		380V / 50Hz / 3-Phase
Power		10.10 kW
Selection rate		≥98%
Clarity		≥97%
Broken rate		≤0.2%

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
