5XFZ-25QS / 25QC1S Combination seed cleaner

Max-Capacity: 10T/h (Base on wheat seed) Double air aspiration+ Double gravity table+ Vibration screen

Keywords:

Combination seed cleaner seed cleaning machine big capacity seed cleaner seed processing machinery multi-function grain cleaner Dual graivty separator

E-mail us:

marketing@sanli.net.cn

Main features

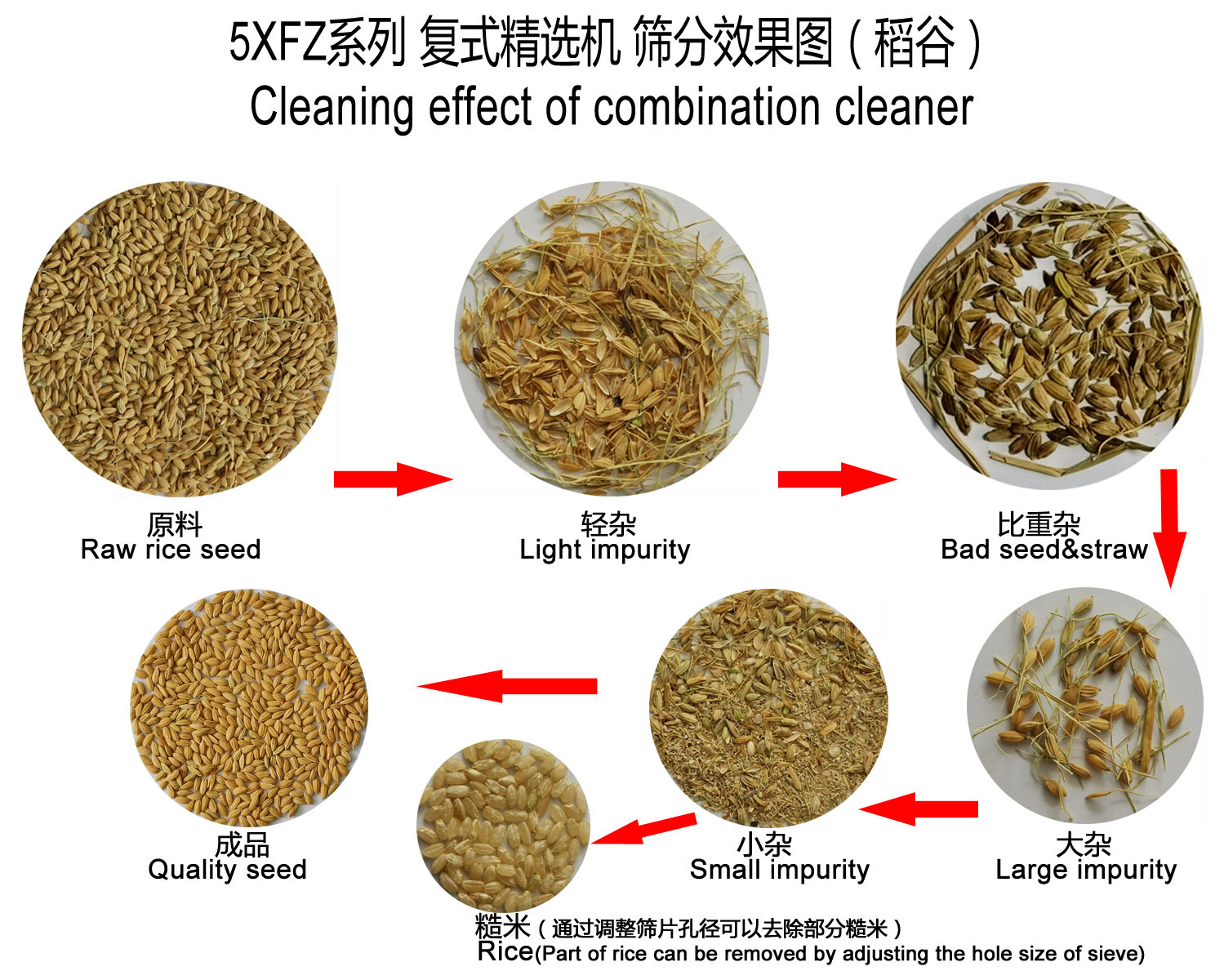

1.Processing process: air separation (primary)→air separation (secondary)→gravity table(primary)→gravity table(secondary)→vibration screener. More scientific and standardized processing flow.

2.Double Air suction part: use the aerodynamic characteristics to remove dust and light impurities, adopt the front and rear double suction duct structure, convenient air volume control, with cyclone duster.

3.Double Gravity table part: positive pressure type gravity table, in accordance with the density separation principle to remove the less light impurities such as immature seed, germinated seed, moldy seeds, diseased seeds, moth eaten grain, etc.

4.Screening part(Optional): The three or four layers screen structure of the vibrating screen is used to remove large and small impurities. It is equipped with rubber ball screen cleaning mechanism to prevent sieve hole from blocking. The vibration motor is used as the source. The magnitude and direction angle of vibration can be adjusted, and the frequency is 960 times / min. it has high reliability and long service life.

Technical specification

Model		5XFZ-25Q	5XFZ-25QS	5XFZ-25QC1S
Capacity	Sesame	2000-4000 Kg/h	2000-4000 Kg/h
	Rice seed	3000-5000 Kg/h	3000-5000 Kg/h
	Maize and beans	5000-8000 Kg/h	5000-8000 Kg/h
	Wheat seed	8000-10000 Kg/h	8000-10000 Kg/h
Size(L×W×H)		3350×2200×3050 mm	6050×2200×3050 mm
Size of gravity table		2200×1650mm×1	2200×1650mm×2
Selecting rate		≥ 97%
Broken rate		≤ 0.2%
Total power		15.6 kW	24.20 kW	31.70 kW
Weight		2600 Kg	3000 Kg	3100 Kg
Wheat huller		Without	Without	With

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
