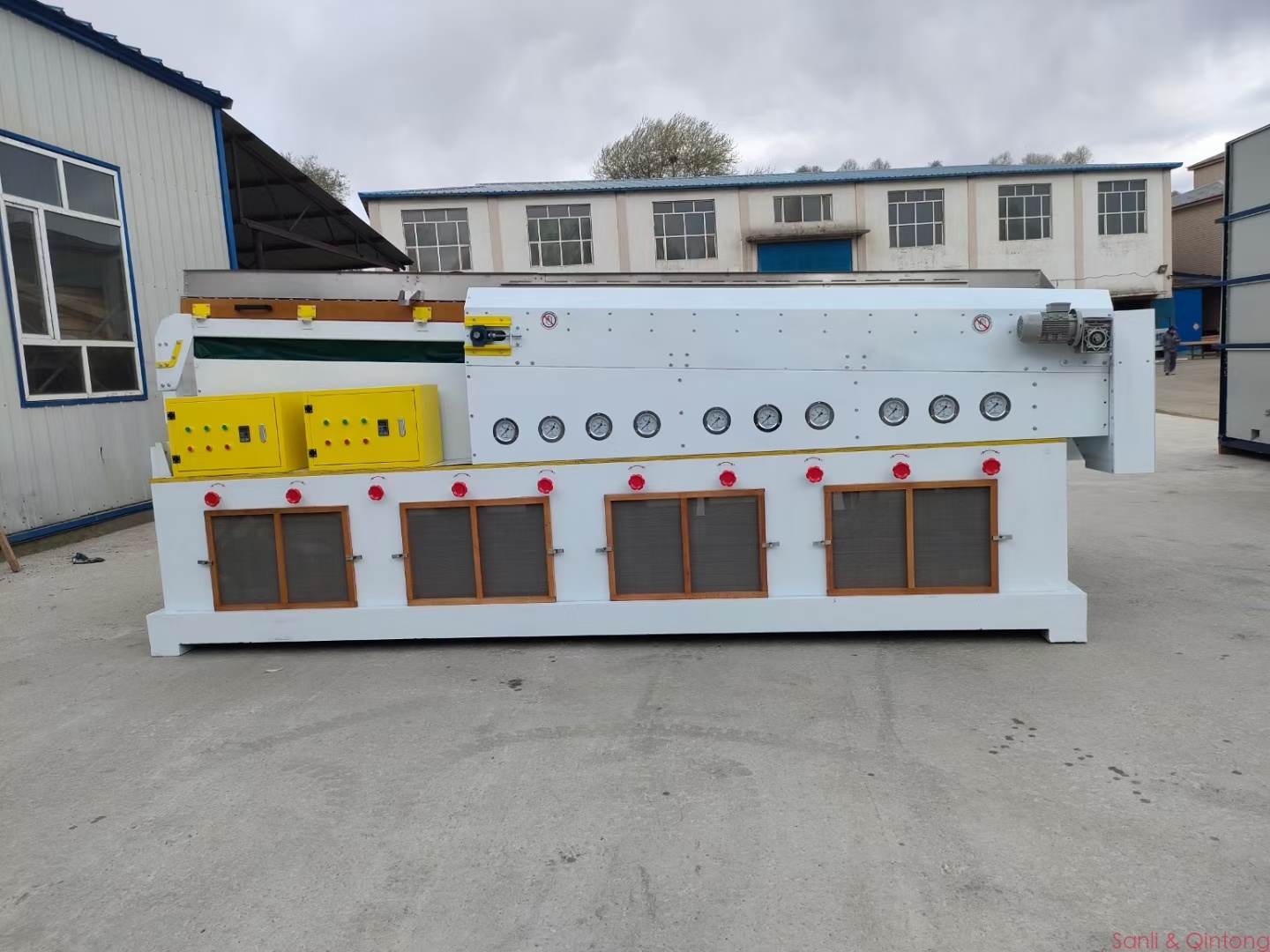

5XZ-10 Gravity table
5XZ-10 Gravity table
Brief Introduction
Gravity Separators are capable of separating dry granular particles of uniform size which differ in specific gravity. They are employed throughout the seed industry to remove light undesirable seed from a wide variety of seed crops. Proper use of a Sanli Gravity Separator will improve the overall quality of any seed lot.
5XZ series gravity separator have a rectangular deck so that the product travels a longer distance resulting in cleaner separation of light and heavy particles. The product flows over the vibrating deck in which pressurized air is forced through causing the material to stratify according to its specific weight. The heavier particles travel to the higher level and the lighter particles travel to the lower level of the deck.
Better maintenance access and improved serviceability. And the automated controls promote precision, repeatability and ease of use
It may be used to separate and standardize beans, sunflower seed, coffee, peanuts, corn, peas, paddy, wheat, sesame and other food grains.
Technical parameters
|
Model |
5XZ-10 |
|
|
Capacity(As wheat seed) |
6000-10000 Kg/h |
|
|
Size (L×W×H) |
4300×2300×1700mm |
|
|
Sieve size |
1520×3580mm |
|
|
Weight |
2000 Kg |
|
|
Power supply |
380V/50Hz/3-Phase |
|
|
Total power |
12.7 kW |
|
|
Selection rate |
≥98% |
|
|
Remove light impurity |
≥85% |
|
|
Remove heavy impurity |
≥80% |
|
|
Impurities rate |
≤2% |
|
|
Remarks |
Can with Cyclone duster |
