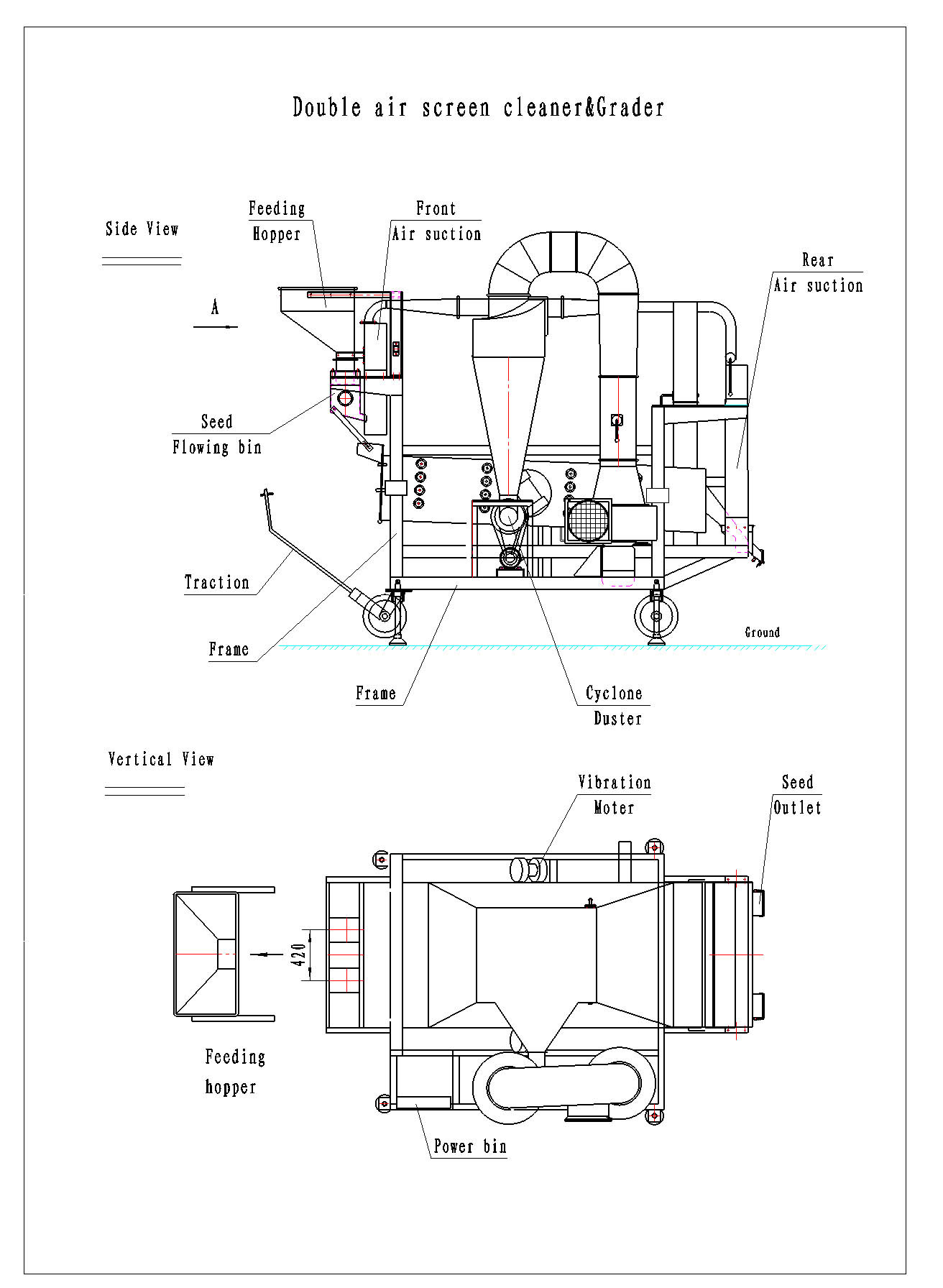

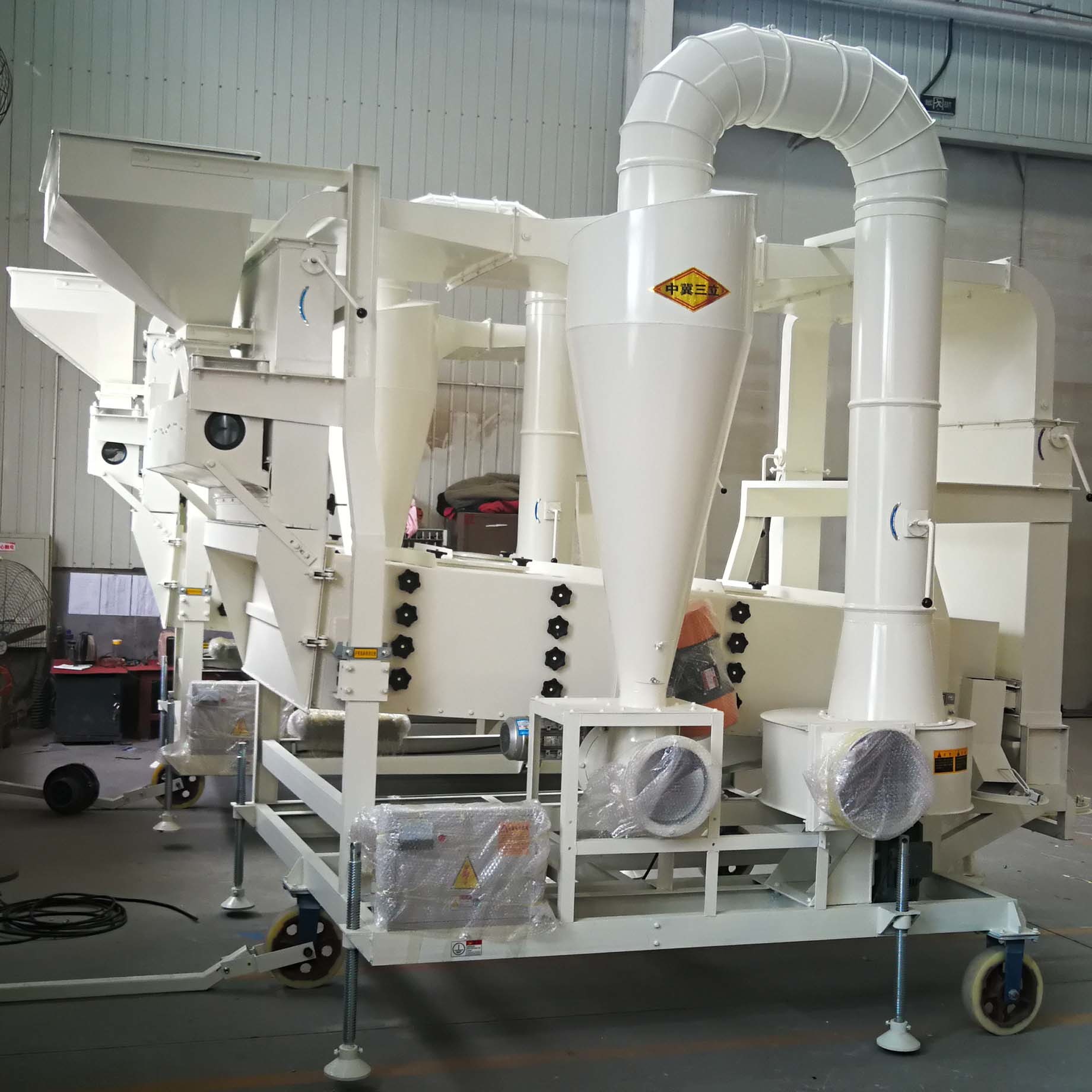

Materials enter the front-end vertical air screen through elevator or other conveyor, this wind selection can remove light impurities according to the different proportion of impurities and materials. Then the materials enter vibration sieve, which can remove big and small impurities by different types of highly precise punching sieve in accordance with different sizes of grains. Finally materials enter the back-end air screen; the secondary wind selection can remove the remnant light impurities further.

Feature

1.Double air screen and twice wind screening, especially separating for the sesame cleaning.

2.The two air screens arrange symmetrically and control individually.

3.The back-end air screen will remove some dust produced by some clods in the secondary wind selection, thus enhancing the brightness of finished product.

4.Large sieve surface design of 1.25m×2.4m, multi-function and easy to change sieves.

5.Bucket elevator and other type conveyor can be chosen in accordance with different materials. 6.This cleaner is suitable for materials with high impurities, such as sunflower seed, melon seed, buckwheat, flax seed, sesame seed, etc.

The main technical parameters

Model		5XZC-10C
Sunflower seed	1-2T/h
Paddy seed	2-3 T/h
Sesame seed	1-2 T/h
Maize	5-7 T/h
Sieve size		1250×2400 mm
Sieve layer		4
Power source		380V, 50Hz, 3-Phase
Power		8.1 kW
Weight		1800 Kg
Overall size		3920×2430×3440 mm
Remark		With cyclone duster
