1.There are many kinds of feeding methods, such as bucket elevator, inclined elevator and belt conveyor. The dust removal mode can be equipped with cyclone dust collector, bag pulse dust collector, simple bag dust collector, etc.

2.The air suction part is the front and rear double suction air duct type, which can be adjusted independently and is suitable for a variety of grains, with strong ability to remove light impurities and with good effect.

3.The vibrating screen adopts 2 or 3 layers structure, which can be equipped with round hole sieve and slot hole sieve at the same time. It can be separated according to the width and thickness respectively, and has good small impurity removal ability. It can achieve higher cleaning rate.

4.The gravity separation part is a positive pressure gravity table. According to the density separation principle, it can remove impurities with small bulk density, such as not full, sprout, mildew, disease, worm eaten grain, straw and so on.

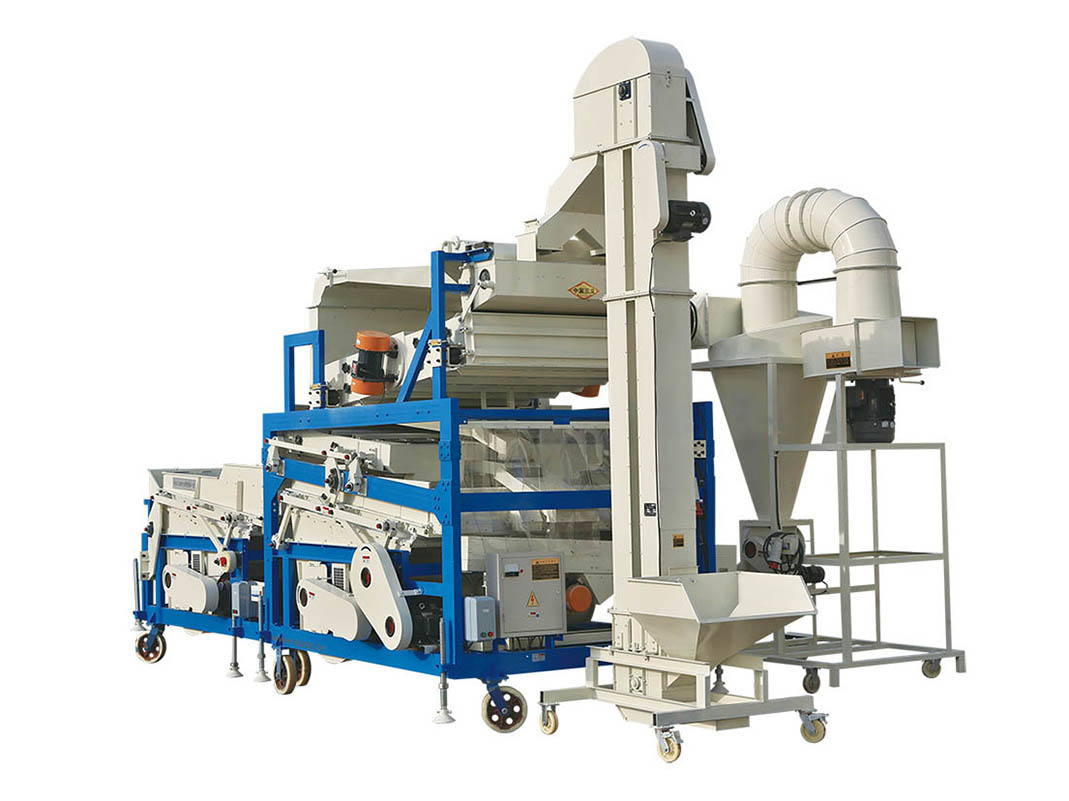

5.This series of combination cleaner has realized modular combination. There are mainly elevator module, duster module, gravity table module and vibration screen module. The cleaner can be any combination of modules, convenient for different users.

Scope of application

The machine is suitable for almost all kinds of seeds, grain crops and oil crops.

Technical specification

Model		5XFZ-150	5XFZ-150B	5XFZ-150S
Max- Capacity	Fine-cleaning	8 t/h (wheat seed), 2-4 t/h(sesame seed)
	Pre-cleaning	15 t/h (wheat seed), 5t/h(sesame seed)
Overall size		3280×2300×3130mm	3280×2300×3270mm	5780×2300×3130mm
Vibration sieve size		1500×2000mm×2 Layer	1500×2000mm×3 Layer	1500×2000mm×2 Layer
Gravity table size		2200x1650mm	2200x1650mm	2200x1650mm x2
Weight		3500 Kg	3550 Kg	3850 Kg
Cleaner power		8.1 kW	8.5 kW	15.1 kW
Cyclone power		8.25 kW	8.25 kW	8.25 kW
Total power		16.35 kW	16.75 kW	23.35 kW
Re-mark		Can be connected with the SM-150 classifier module
