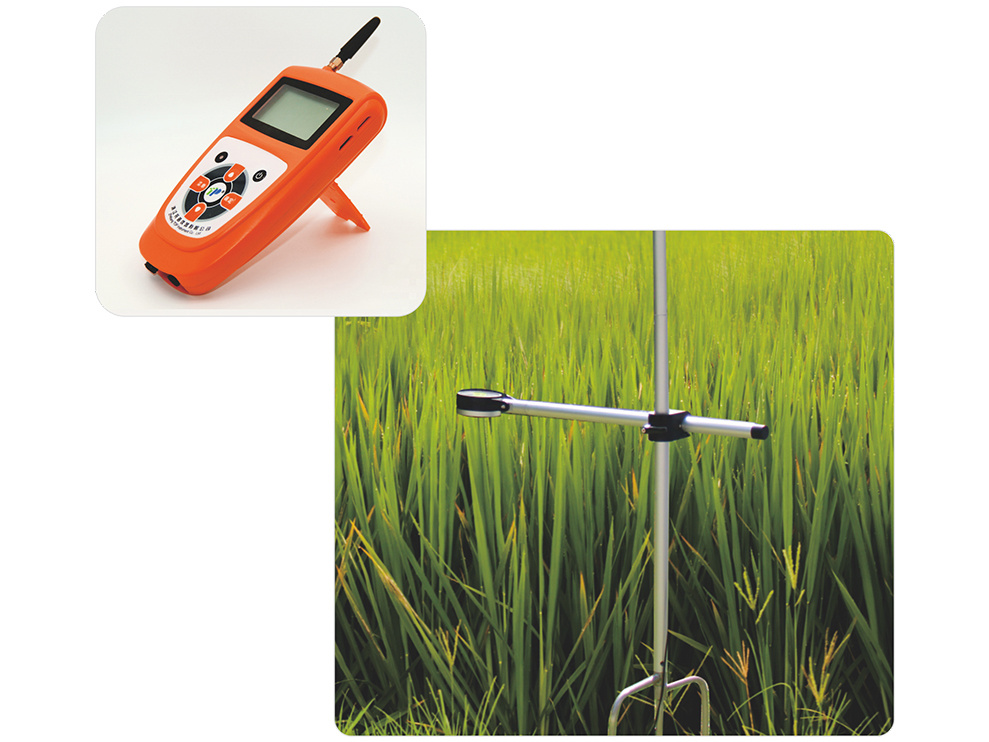

TOP-1200 Plant Canopy Analyzer is widely applied for farming production and agricultural research, canopy energy resource investigation, measure the light interception among plant canopy, and research the relation between plant growth & development, production quality and light utilization.
Characteristics.

1.High waterproof grade: all aluminum alloy, waterproof grade IP65.

2.Using visible/near-infrared light reflection spectrum technology and multi-channel spectral information scanning technology. The vegetation surface parameters, plant canopy information, plant nutrient information, soil nutrient information, environmental parameters, plant pests and diseases can be quickly determined.

3.Many software analysis functions: it can analyze the vegetation index RVI, CMM, nitrogen content in the crop leaf layer, nitrogen accumulation, leaf area index, leaf dry weight, etc.

Product Paramenters

Model	TOP-1200
Working environment	0℃～60℃, relative humidity 0～100%RH
Spectral bandwidth	＜8nm FWHM
Field angle	30°
Collection area	0.23～0.38m²
Number of channels	2
Collector material	All aluminum alloy, waterproof grade IP65
Storage environment	-30～70℃, humidity ≤95%RH
Power	8.4 VDC
Light source	LED
Central wavelength	730mm, 810mm

Model difference

Model	Function difference
TOP-1000	High plant canopy (Fruit tree）
TOP-1200	Low plant canopy (Paddy, maize, wheat, grass)
TOP-1300	High plant canopy (Fruit tree) - Connect with computer
