TP-PM-1-B Greenhouse Photosynthesis Meter

TP-PM-1-B New greenhouse photosynthesis meter photosynthesis detector

Keywords:

Greenhouse Photosynthesis Meter High accuracy Plant Photosynthesis Analyzer High precision plant photosynthesis analyzer

E-mail us:

marketing@sanli.net.cn

Related Product

Product Inquiry

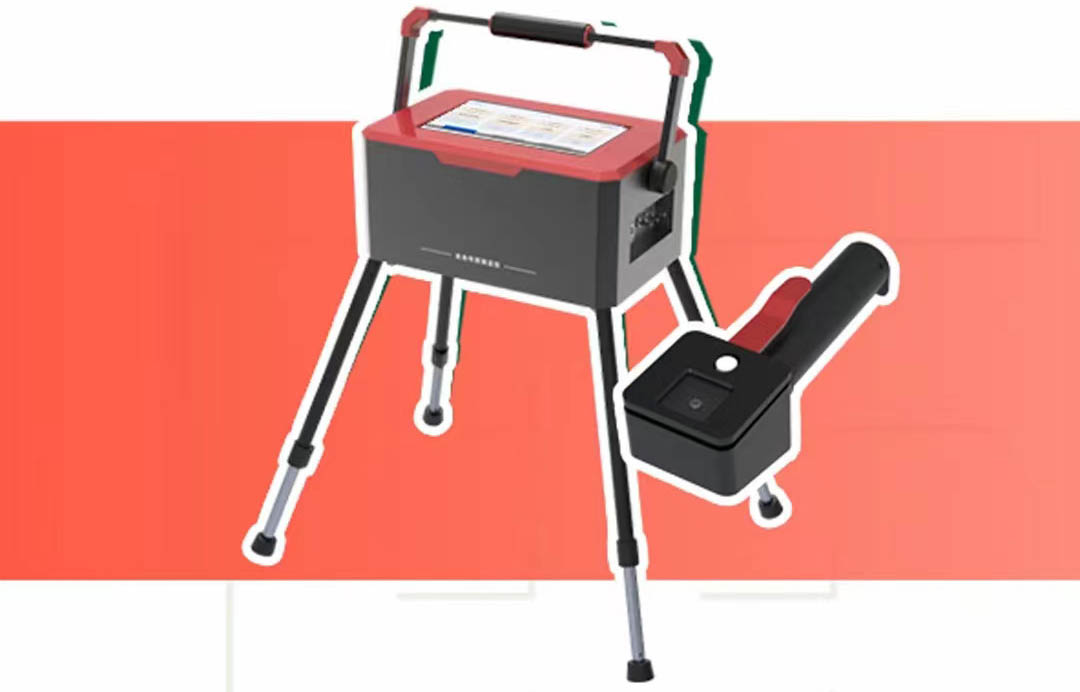

TP-PM-1-B Greenhouse Photosynthesis Meter

Products Description

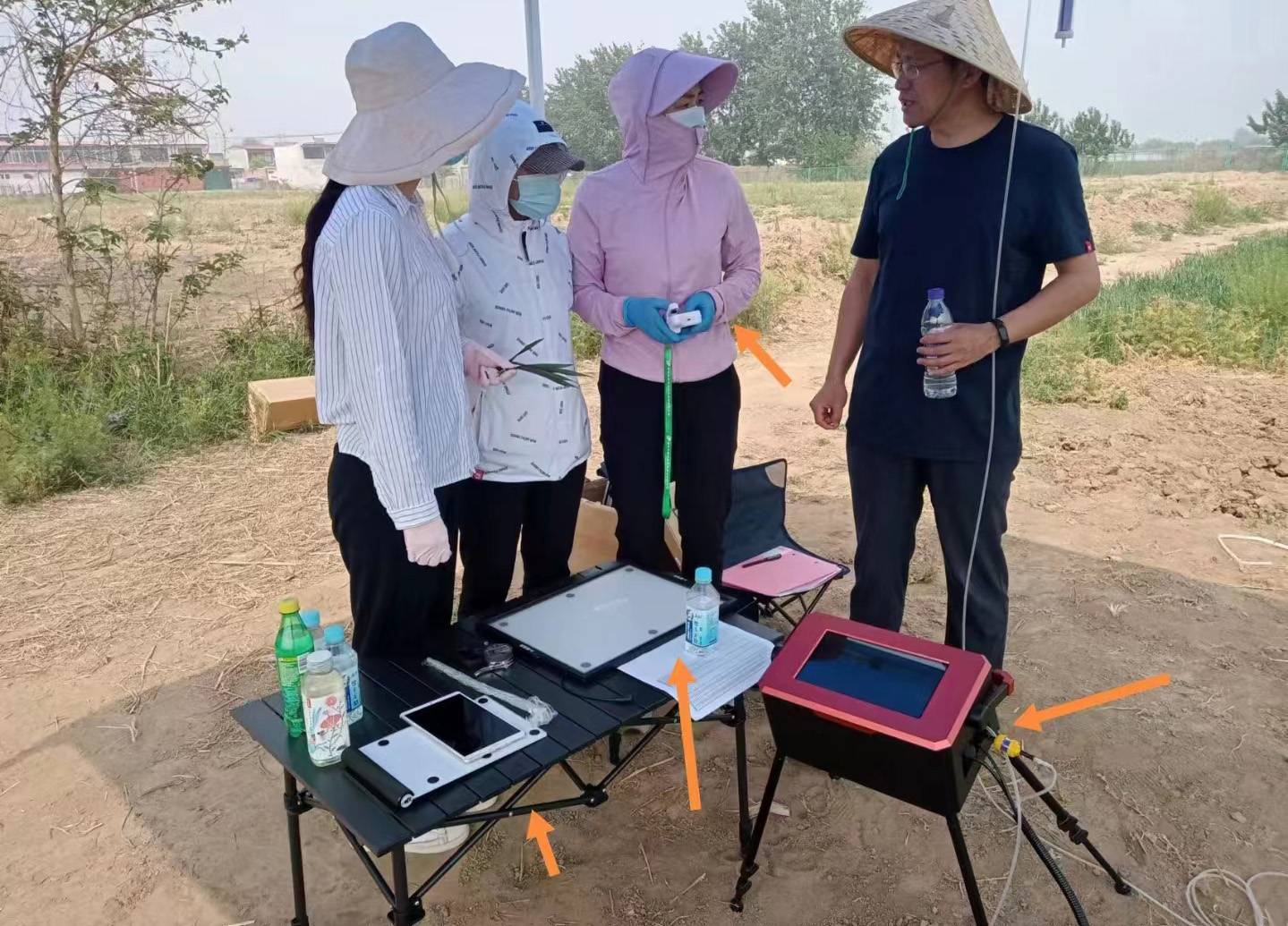

The photosynthesis tester is to test photosynthesis of living leaves of plants in artificial climate chambers, greenhouses and fields

Details Images

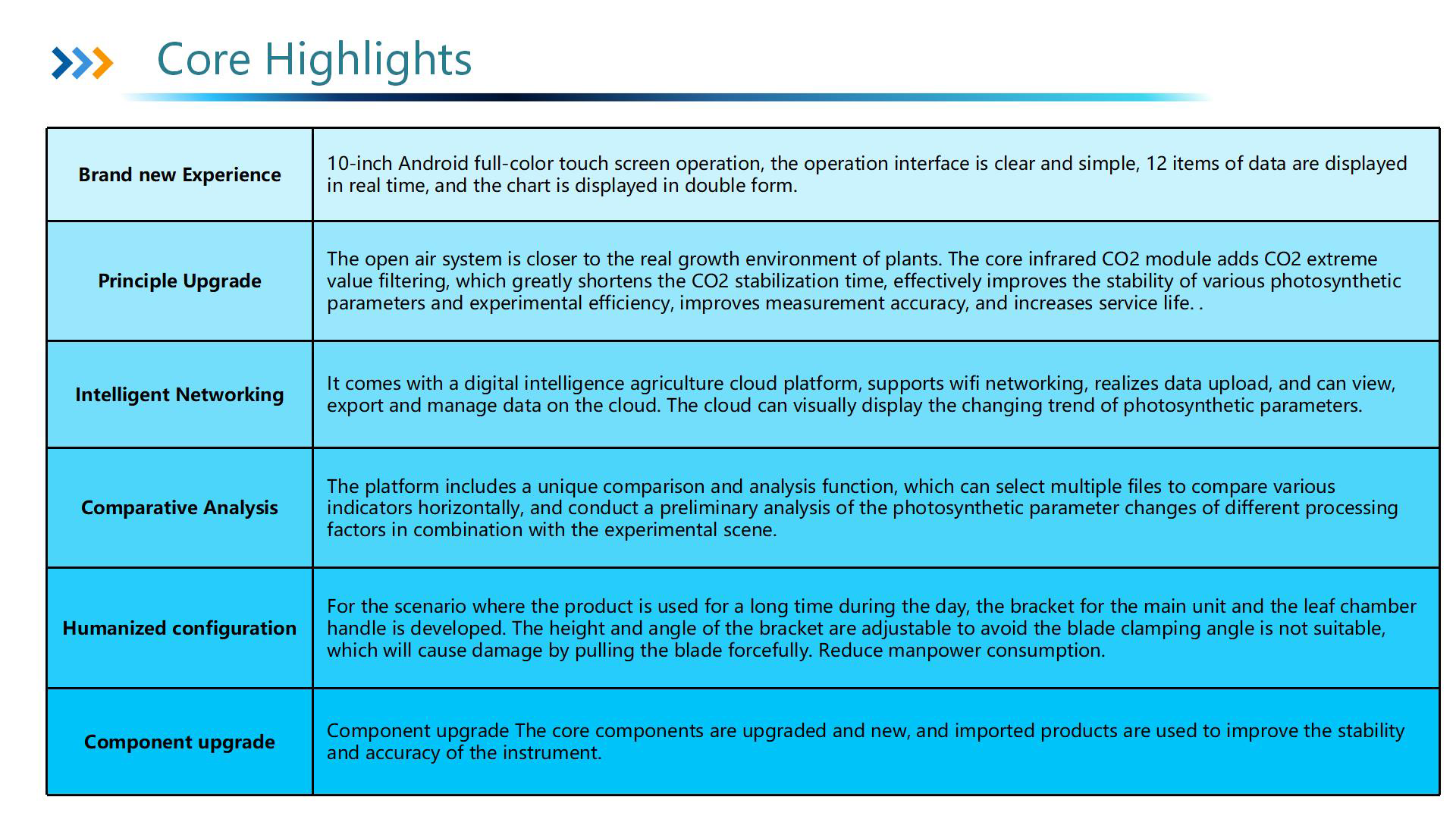

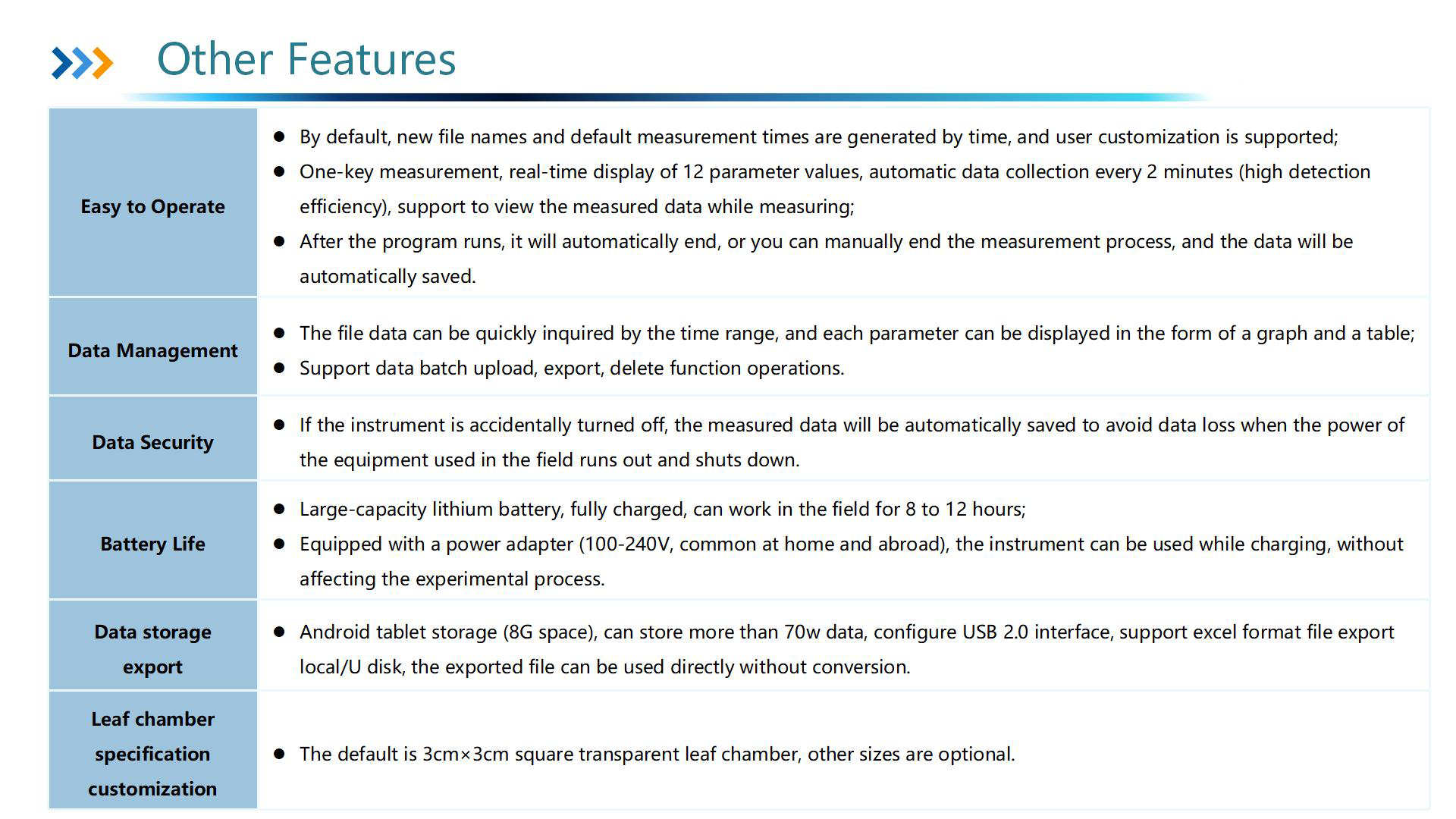

Features

Product Paramenters

Parameter	Measuring range	Error	Resolution
CO₂ concentration (CO₂)	0-2000 μmol/mol（ppm）	≤3%FS	1‰
Intake air temperature (Ta)	0-50 ℃	≤±0.3 ℃	1‰
Leaf chamber temperature (Tc)	0-50 ℃	≤±0.3 ℃	1‰
Intake air humidity (RHa)	0-100 %RH	≤±5 %RH	1‰
Leaf Chamber Humidity (RHc)	0-100 %RH	≤±5 %RH	1‰
PAR	0-2500 μmol/（m2·s）	≤±5 FS	1‰
leaf temperature（Tl）	0-50℃	≤±0.2 ℃	1‰
Net photosynthetic rate（Pn）	μmol/（m2·s）	/	1‰
Stomatal conductance（Gs）	mol/ (m2·s)	/	1‰
transpiration rate（Tr）	mmol/ (m2·s)	/	1‰
Intercellular CO₂ concentration（Ci）	μmol/mol	/	1‰
Instantaneous moisture utilization（WUE）	Pn/Tr	/	1‰

FAQ

Q1. How can I choose the suitable one?

Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

Q2.How can I pay?
We accept many payment term, such as T/T, Western Union…

Q3.When I receive it after pay?
Normal models can be delivered with 5-7days, please contact us to check transport time to your address.

Q4.What should I do if I do not know how to use?
Manual user will be sent together, you can also contact us with more technological support.

Q5.What should I do if some parts broken?
We do standard export package and 1 year warranty except wear parts.
