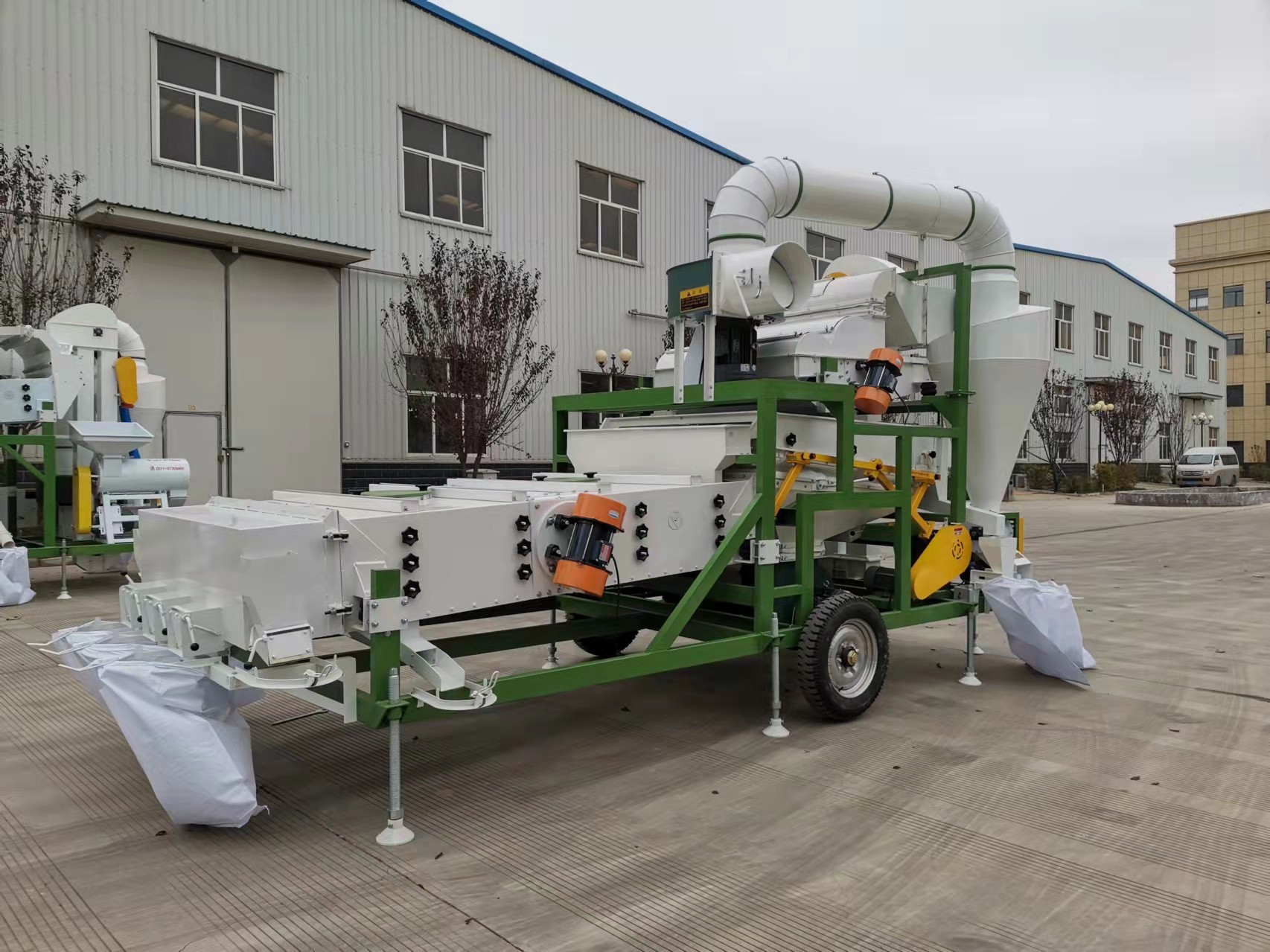

5XFZ-10 Combination seed cleaner with gravity table
5XFZ-10 Combination seed cleaner with gravity table
After the raw grain is fed, it is transported to the air screen by the bucket elevator to remove the dust, chaff and other light impurities in the grain. The light impurities are settled by the air duct and the cyclone dust collector, and then discharged by the air closers, Then, the grain flows into the gravity table to remove other impurities with light bulk density, such as chaff grains, bud grains, moth eaten grains, moldy grains, etc. After air separation and gravity separation, the grain finally enters the vibrating screen, and through the sieve with customized hole size, the larger and smaller size impurities are removed.
Main features:
- Complete functions: it integrates the functions of air separation, gravity selection and screening (grading), with high purity of finished products.
- Horizontal air suction screen: secondary suspension sedimentation separation, strong ability to remove light impurities, with high selection rate.
- Air source of gravity table: double fan design, uniform air volume of table, convenient adjustment.
- Large production rate: fast processing speed, short cycle, high efficiency.
- Green environmental protection: equipped with cyclone dust removal system, it can discharge dust and light impurities after sedimentation, without pollution;
- According to the user's requirements, it can be equipped with rice awning or wheat shelling machine.
Scope of application
The machine is suitable for processing various crops and all granular materials. Especially for wheat, rice, sesame, flaxseed, sunflower seed and other crops with small bulk density, the effect is better.
Technical specification
|
Model |
5XFZ-7.5 |
5XFZ-10 |
|
|
Capacity |
Rice seed |
2000-3000 Kg/h |
3000-5000 Kg/h |
|
Wheat seed |
5000-7000 Kg/h |
6000-8500 Kg/h |
|
|
Sesame seed |
1200-2500 Kg/h |
1500-3000 Kg/h |
|
|
Size(L×W×H) |
6000×2150×3560 mm |
6000×2350×3560 mm |
|
|
Sieve size(L×W×Layers) |
2400×1250mm×3 layers |
2400×1500mm×3 layers |
|
|
Size of gravity table |
2200×1400 mm |
2200×1600 mm |
|
|
Selecting rate |
≥ 97% |
≥ 97% |
|
|
Broken rate |
≤ 0.2% |
≤ 0.2% |
|
|
Total power |
15.2 kW |
16.1 kW |
|
|
Weight |
2800 Kg |
3100 Kg |
|
Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
