The machine is a special equipment for packaging, chemical building materials, fertilizer, grains and telecommunications, port and dock warehouse and bag making and other industries.

Keywords:

Portable Hi-speed Package Closer sewer sewing machine package closer

E-mail us:

marketing@sanli.net.cn

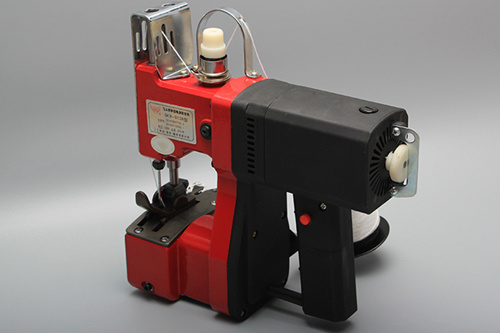

Portable Hi-speed Package Closing machine

GK9-013B Model

Features:

1. The machine is the patent product innovative design, has the advantages of fast speed, good reliability, completely change the old model of motion stability is poor, easy to wear, noise and other mechanical design flaws. The low gear, wear resistance, high reliability, light weight, good insulation performance, compact and reasonable structure and other characteristics, can reduce the labor intensity of workers and long time use.

2. The pressing force is adjustable seam sewing: in different time, adjust the pressing force, in order to improve the work efficiency, prolong the service life of the parts.

3. Automatic shear line: in the gap at the end without the need for manual cutting line, only the tail line into the line can be.

The machine is a special equipment for packaging, chemical building materials, fertilizer, grains and telecommunications, port and dock warehouse and bag making and other industries.

A single thread chain stitch, good elasticity, firmness, convenient disassembly, simple operation, easy to repair.

Technical Parameters:

1. A single thread chain stitch(101).

2. Needle type: Use ordinary 9k9 machine

3. The use of specification: 9k9 polyester suture line

4. The sewing speed:1300-1700 needle/min

5. Motor specification: 210-230V, 210W, 1500rpm

6. Size: 250×80×250mm

7. Weight: 2.8 Kg

8. Materials: Aluminum alloy，Insulating plastics
