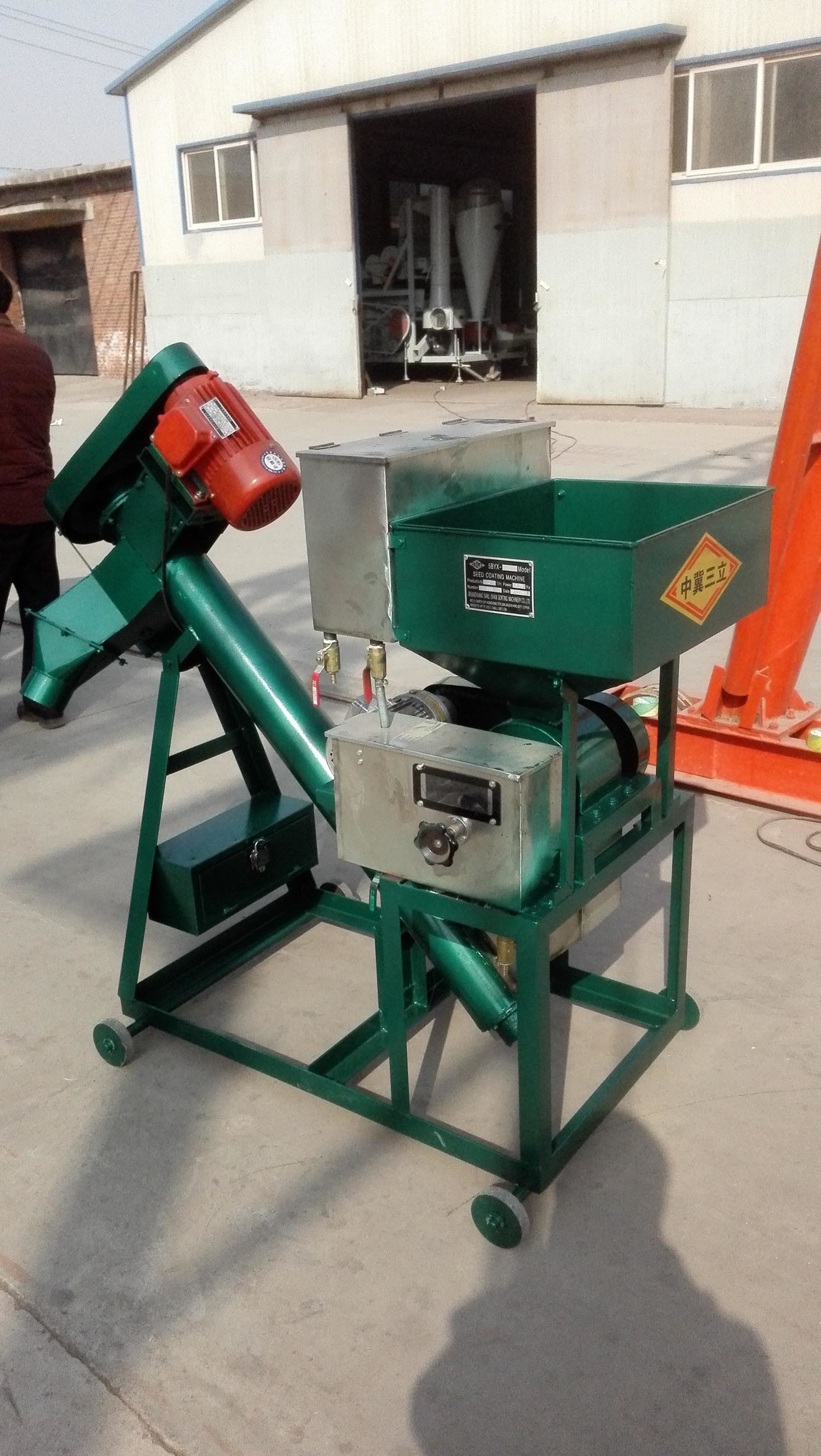

The model of 5BYX-2(Seed treater) is a compact, lightweight and easy to operate unit for treating a variety of seeds. Easy to transport for use at temporary treating locations. Chemical contact parts are made of stainless steel. Standard features include: Metering Tank for liquid chemical, full set of chemical cups, two-way bagger, independent power switches. This machine is suitable for the low volume coating working, but high frequent of using.

Technical specification

Model	5BYX-2
Productivity(Base on wheat)	2000 KG/H
Size（L×W×H）	1530×670×1540 mm
Power	380V 50Hz
The total power	1.85 kW
Drug-material proportional range	1:25～1:20
Coating uniformity degree	≥ 93%
Broken rate	≤ 0.1%
Auto cleaning machine rate	≥ 95%
Work reliability	≥ 98%
Coating method	Stirring
Weight	200KG
Movable（fixation）	Movable/Fixation
