It is a kind of multifunctional machine. It can peel the skin and remove the corn form the cob. It is high frequency and can be connected with Strap type tractor in the front. Even if there is no tractor, it can be connected with kinds of motors both or three-phase.

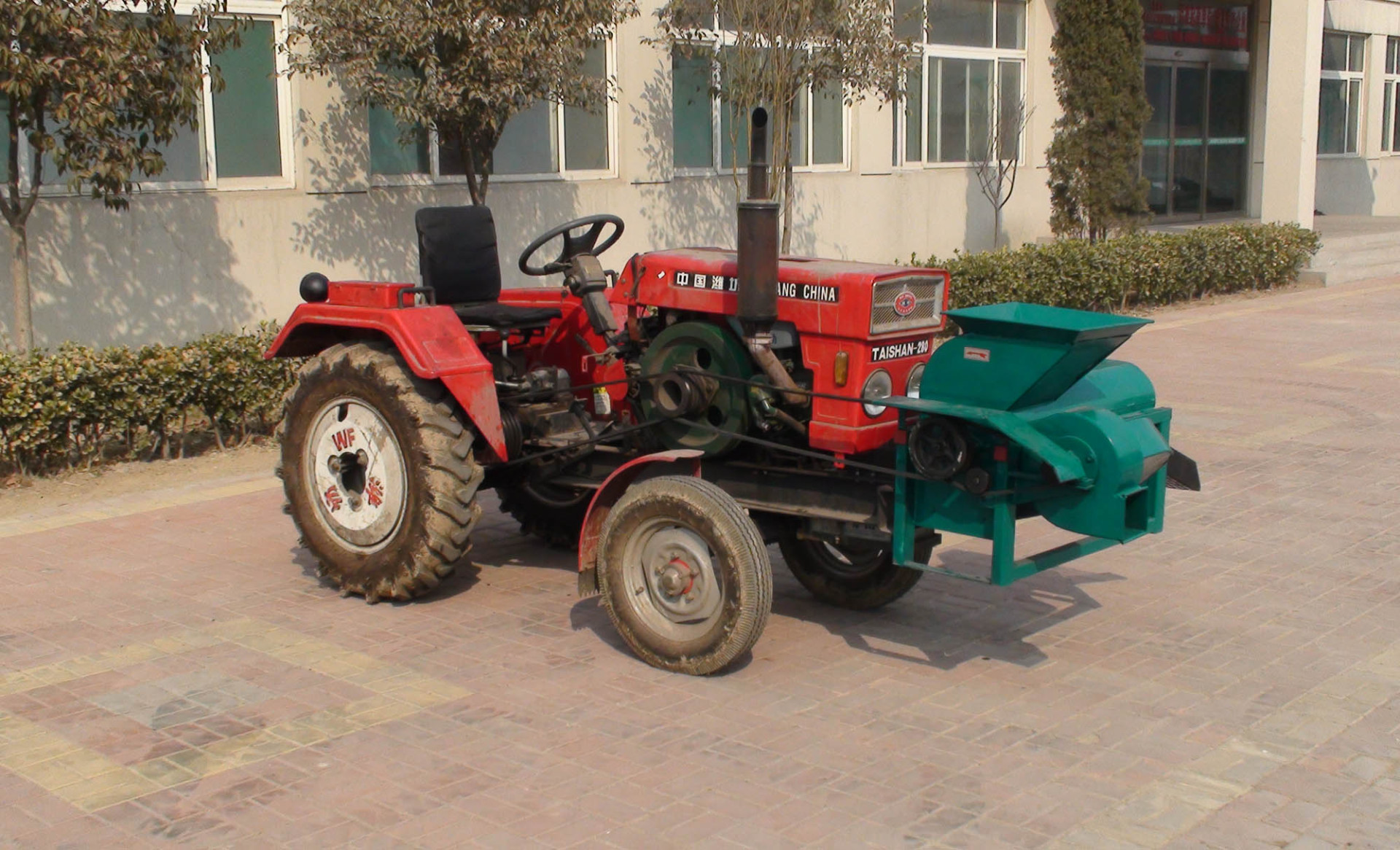

It also can contact with tractor in the front with vee blet. The following is the picture of it.

Brief Instruction

5TYM Series corn thresher combinations are special used for maize threshing. They feature on small size, flexible transportation among working places, easy adjustment and usage, high efficiency, high threshing performance, low breakage rate and so on. And this machine is drived by diesel engine or motor. This is a new type corn thresher with peeling and threshing function.

Technical specification

Model	5TYM-850	5TYM-900
Capacity	≥5000 kg/h	≥6500 kg/h
Size (L×W×H)	1100×700×750 mm	1100×800×850 mm
Matched Power	12-18 Hp	15-20 Hp
Spindle speed	1200±50 r/m	1200±50 r/m
Threshing rate	≥98%	≥98%
Broken rate	≤1%	≤1%
Dia thresher roller	300 mm	350 mm
Weight	75 Kg	85 Kg
