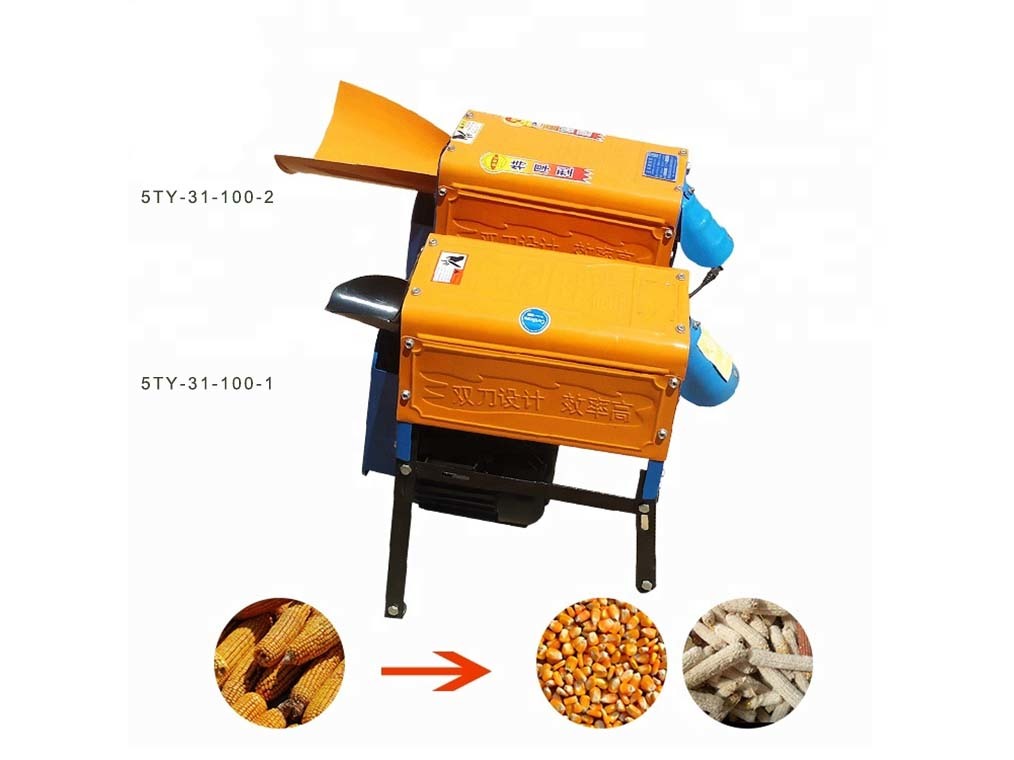

The 5TY-31-100 type Maize thresher has compact structure and very small size. It adopts special threshing method which make the process clean. The Maize core is discharged entirely which doesn't need to be cleaned.

This Maize thresher has very low broken rate and it doesn't damage the maize seed. High capacity is also one of this maize thresher's advantage. In a word, this model of thresher is the first choice of both small-scale farmers and seeds companies

Technical Parameters

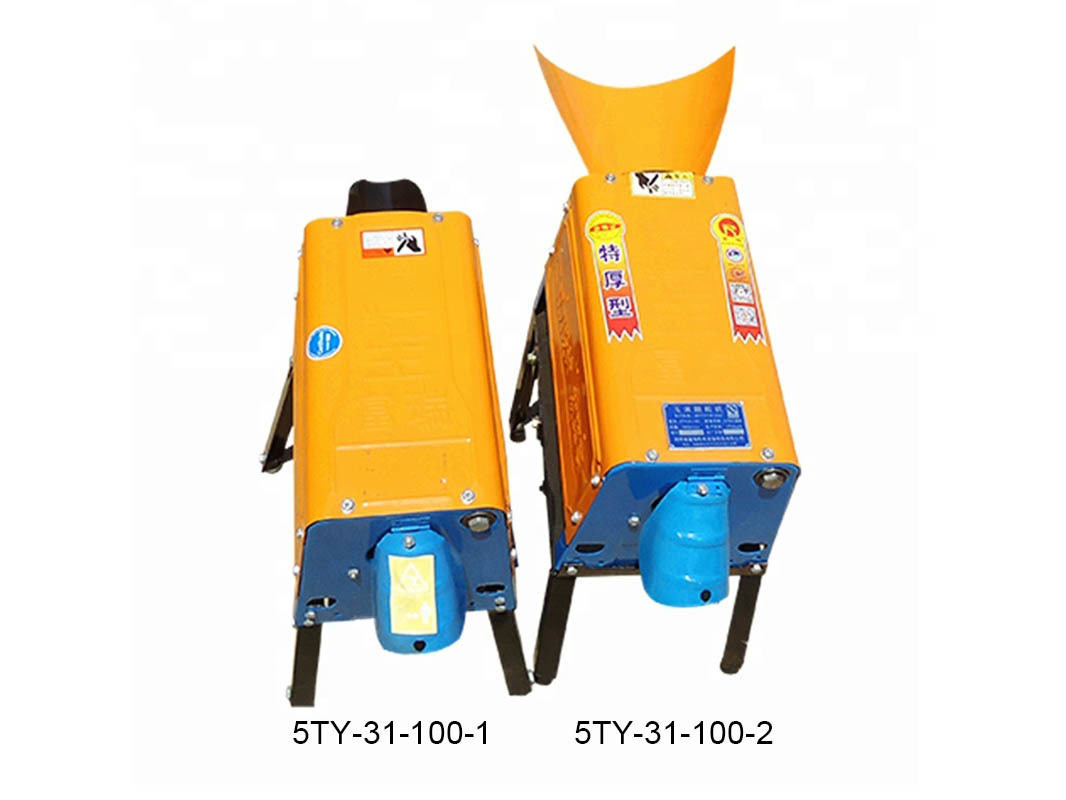

Model		5TY-31-100-1 5TY-31-100-2
Capacity		more than 400Kg/h
Drum rotation speed		2000 r/min
Weight-main unit		9.9 Kg
Package size		53×27×35 cm
Motor	Power	0.48 kW
	Power source	220V, 50Hz
	Revolving speed	2800 r/min
	Motor belt	φ40mm
	Weight	9.3 Kg
	Motor package size	32×23×26.5 cm
Threshing rate		＞98%
Broken rate		＜0.1%
Warranty		12 months
H.S Code		8433520000
40GP /PCS		1619PCS not with motor /1049pcs with motor
40HQ /PCS		1898PCS not with motor /1229pcs with motor
